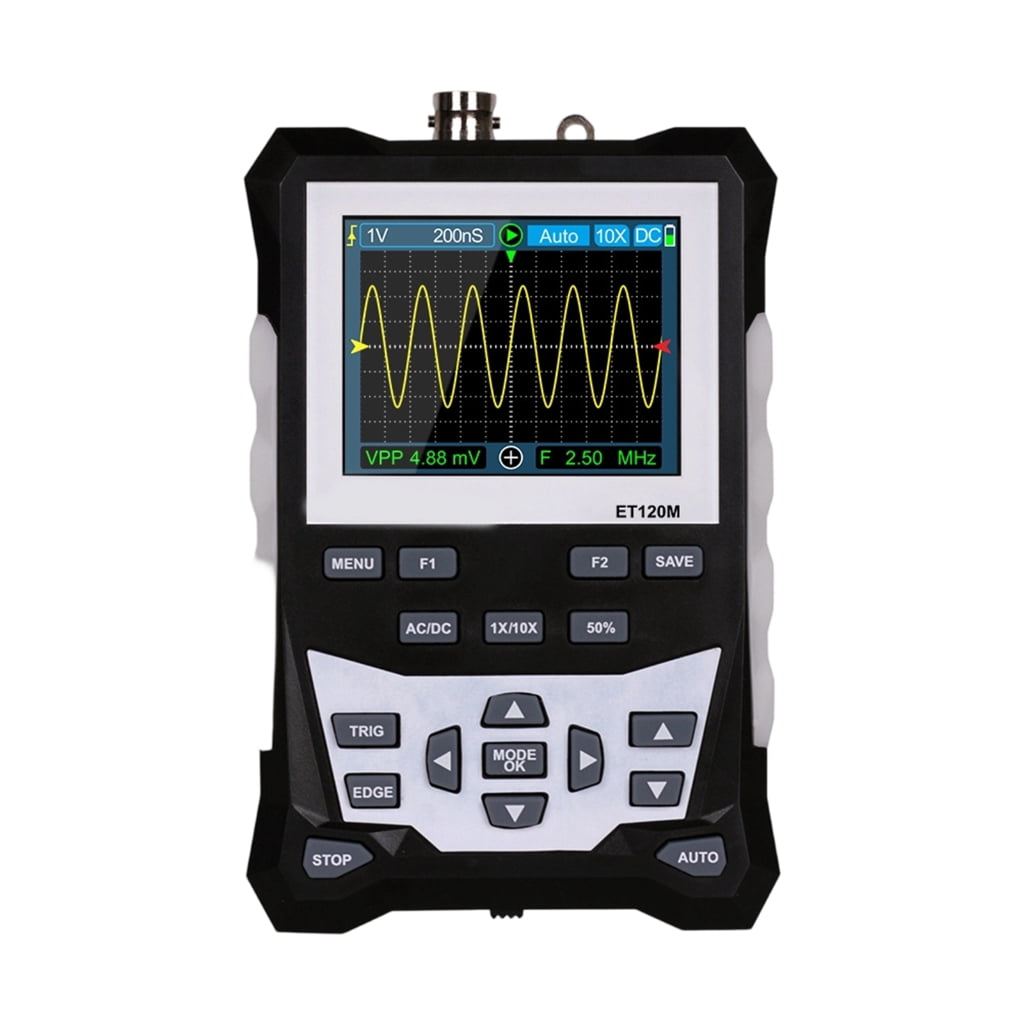

Miiottaa 120MHz Bandwidth Digital Oscilloscope Featuring 2500 Waveform Storage And Type C Charging For Mobile Diagnostics

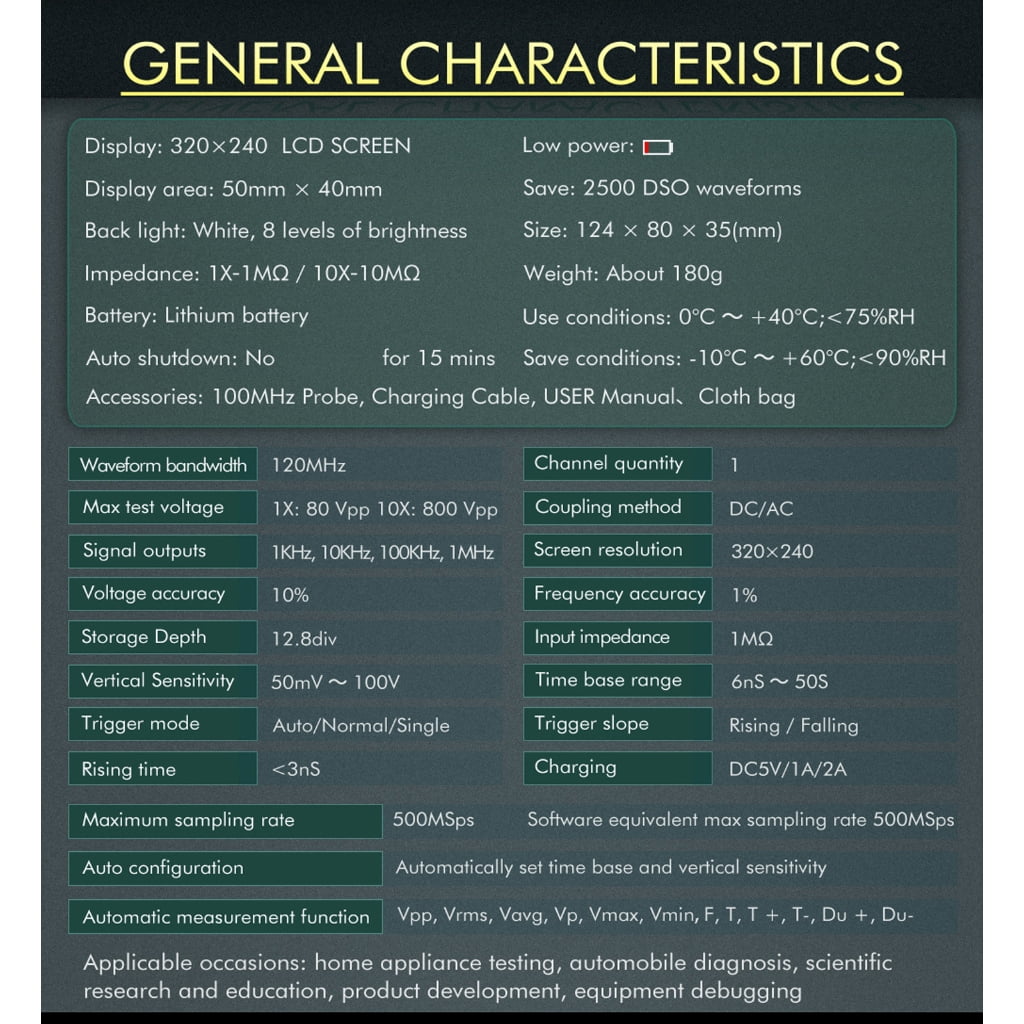

<br> <b>Features:</b><br> Featuring 120MHz bandwidth and 500Msps sampling rate, this compact oscilloscope accurately captures high frequency signals detail.<br> Offer 12 auto measurements including Vpp, frequency, and period. Three sweeping modes (Auto/Normal/Single) adapt to various signals, while adjustable triggering edges, timebase, and sensitivity ensures efficient debugging.<br> Built with ABS. The built in battery and Type C charging for stable outdoor use and field inspections.<br> Stores up to 2500 waveform datasets for analysis and includes a 1kHz~1MHz square waves calibration output. Features 1X/10X probe attenuation.<br> Equipped with a 320x240 color screen (8 levels brightness) and button layout. Single touch auto setup simplifies waveform adjustment, making it beginner friendly while boosting efficiency.<br> <br> <b>Specifications:</b><br> Component: ABS.<br> Weight: 200g.<br> Bandwidth: 120MHz.<br> Sampling rate: 500Msps (equivalent).<br> Storage depth: 12.8div.<br> Rise time: &lt;3ns.<br> Number of channels: 1 channel.<br> Input impedance: 1X: 1MΩ / 10X: 10MΩ.<br> Vertical sensitivity: 50mV~100V/div.<br> Time base ranges: 6ns~50s/div.<br> Voltages accuracy: ±10%.<br> Frequency accuracy: ±1%.<br> Dimensions: 124x80x35mm/4.88x3.14x1.37in.<br> <br> <b>Note:</b><br> Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. <br> Due to the difference between different monitors, the picture may not reflect the actual color of the item.<br> <br> <b>Package includes:</b><br> 1 Set Digital Oscilloscope

• Featuring 120MHz bandwidth and 500Msps sampling rate, this compact oscilloscope accurately captures high frequency signals detail.

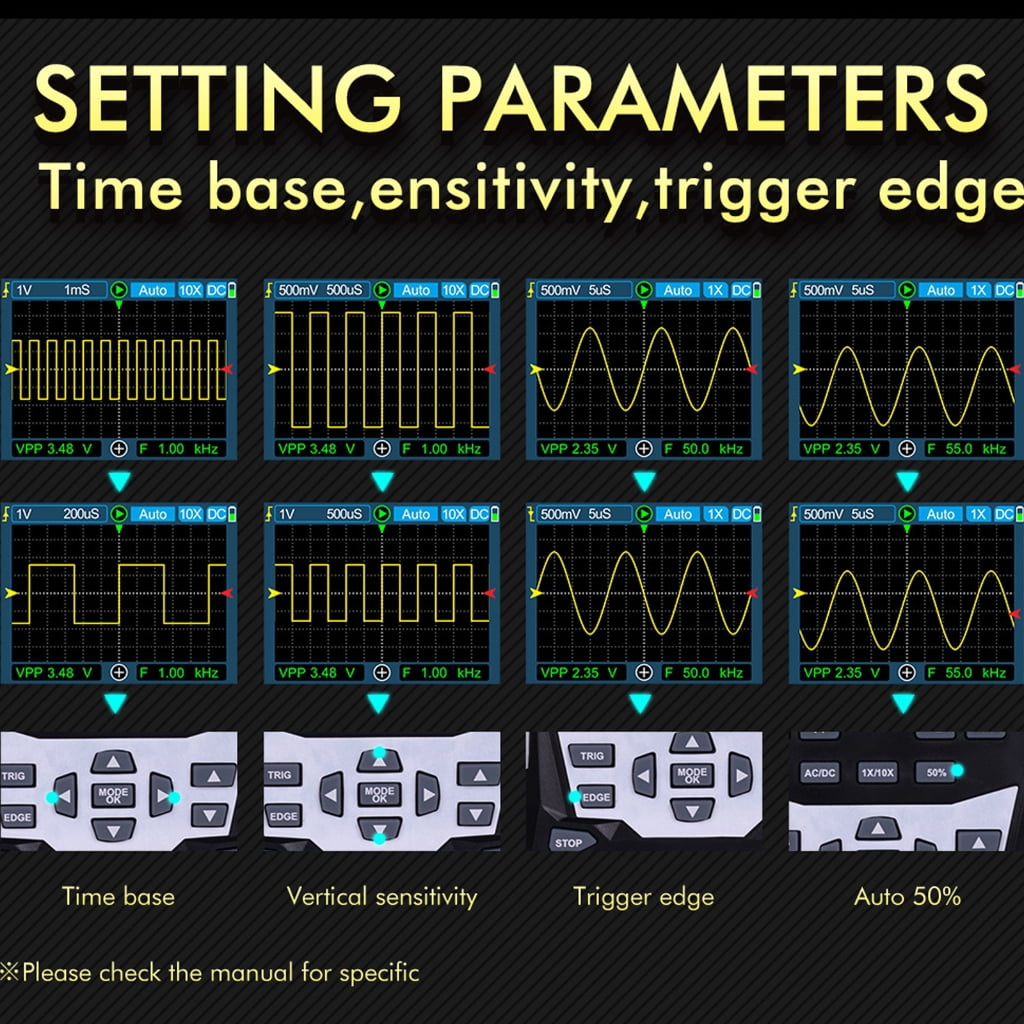

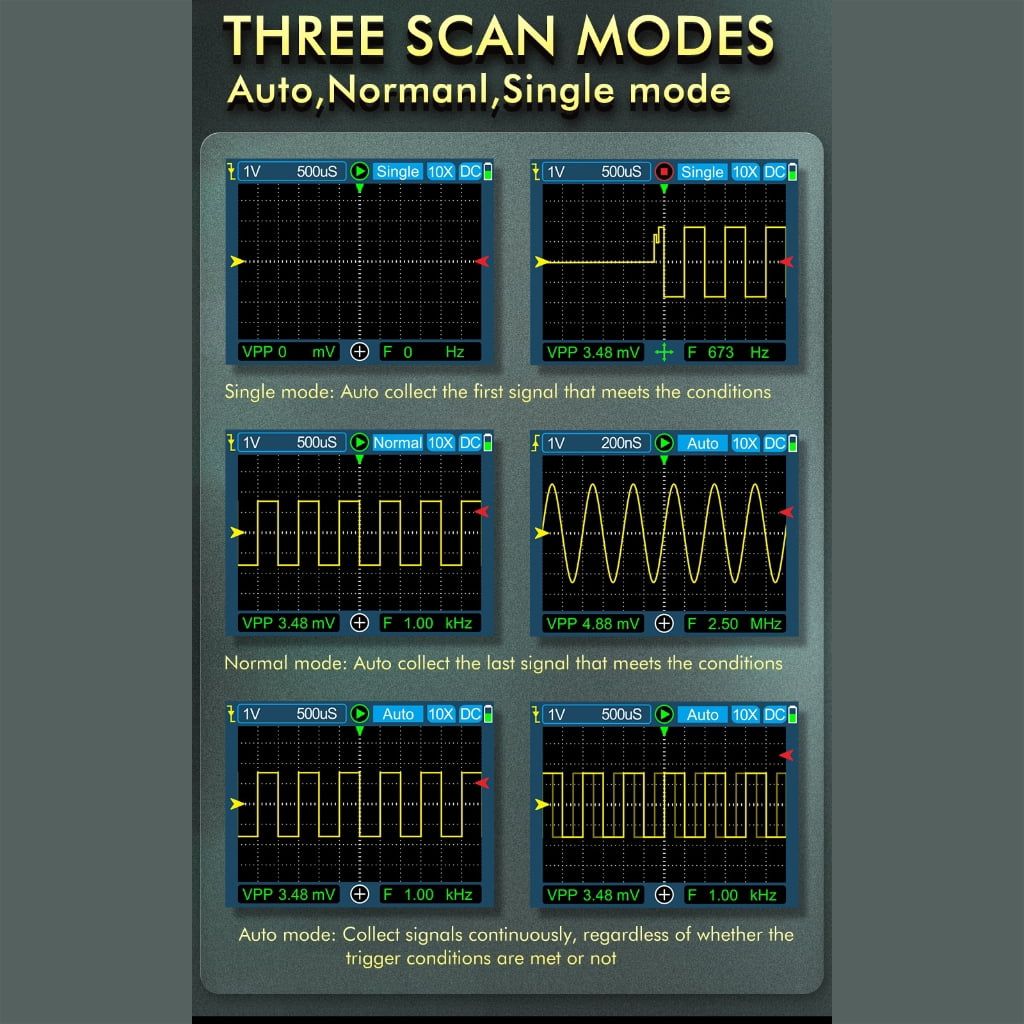

• Offer 12 auto measurements including Vpp, frequency, and period. Three sweeping modes (Auto/Normal/Single) adapt to various signals, while adjustable triggering edges, timebase, and sensitivity ensures efficient debugging.

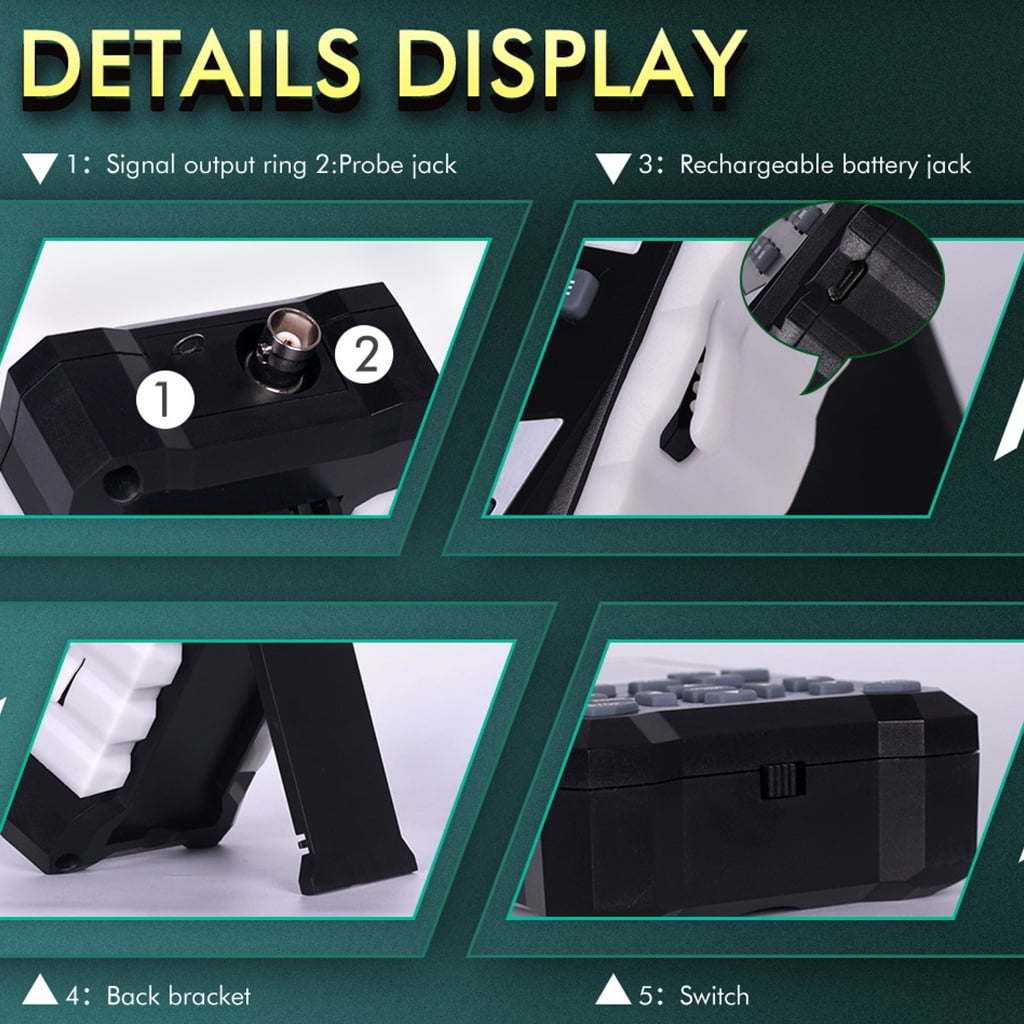

• Built with ABS. The built in battery and Type C charging for stable outdoor use and field inspections.
• Stores up to 2500 waveform datasets for analysis and includes a 1kHz~1MHz square waves calibration output. Features 1X/10X probe attenuation.
• Equipped with a 320x240 color screen (8 levels brightness) and button layout. Single touch auto setup simplifies waveform adjustment, making it beginner friendly while boosting efficiency.
